All the Ways to Render HTML in the Browser: A Visual Guide

Generally, there are several techniques for rendering HTML in the browser. These frontend development methods can often feel overwhelming. Therefore, having a visual representation of these methods can be highly beneficial. Below is a list of key techniques for rendering HTML.

1. MPA - (Traditional Multiple Page Application)
2. Basic SPA - (Single Page Application)
3. SPA with SSR - (Single Page Application with Server Side Rendering)
4. SPA-influenced isomorphic (Server Rendered)
5. MPA influenced split execution (Island/Server Component)

All the diagrams were created by me, based on Theo’s video 🔗, with my own improvisations. For a deeper dive into these techniques, I highly recommend watching Theo’s video for detailed explanations

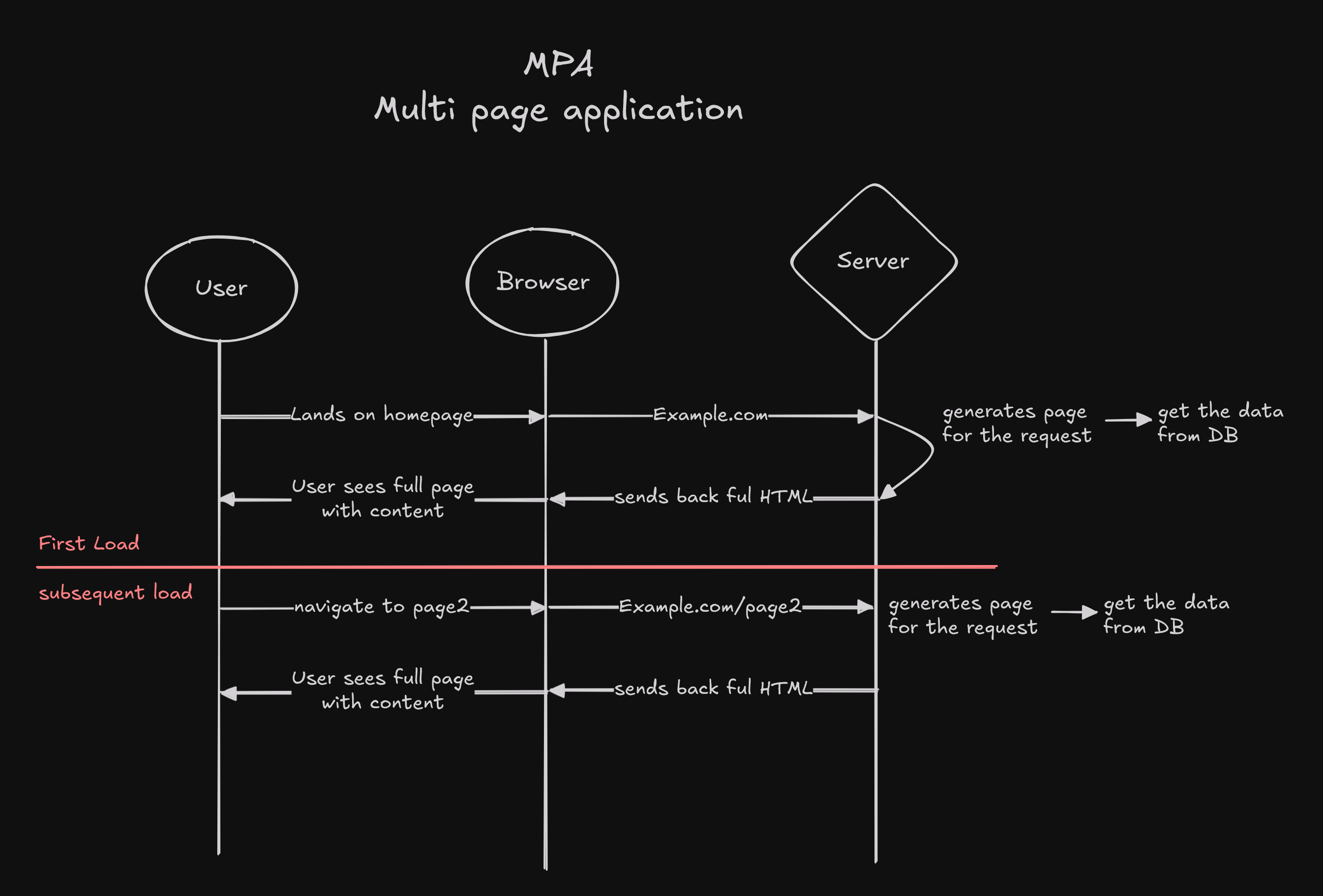

#1. MPA - (Traditional Multiple Page Application)

Pros:

1. Good for SEO, since first load will have complete HTML
2. Less complexity

Cons:

1. No immediate navigation.
2. HTML file completely generated from the server. So, no CDN benefits here.

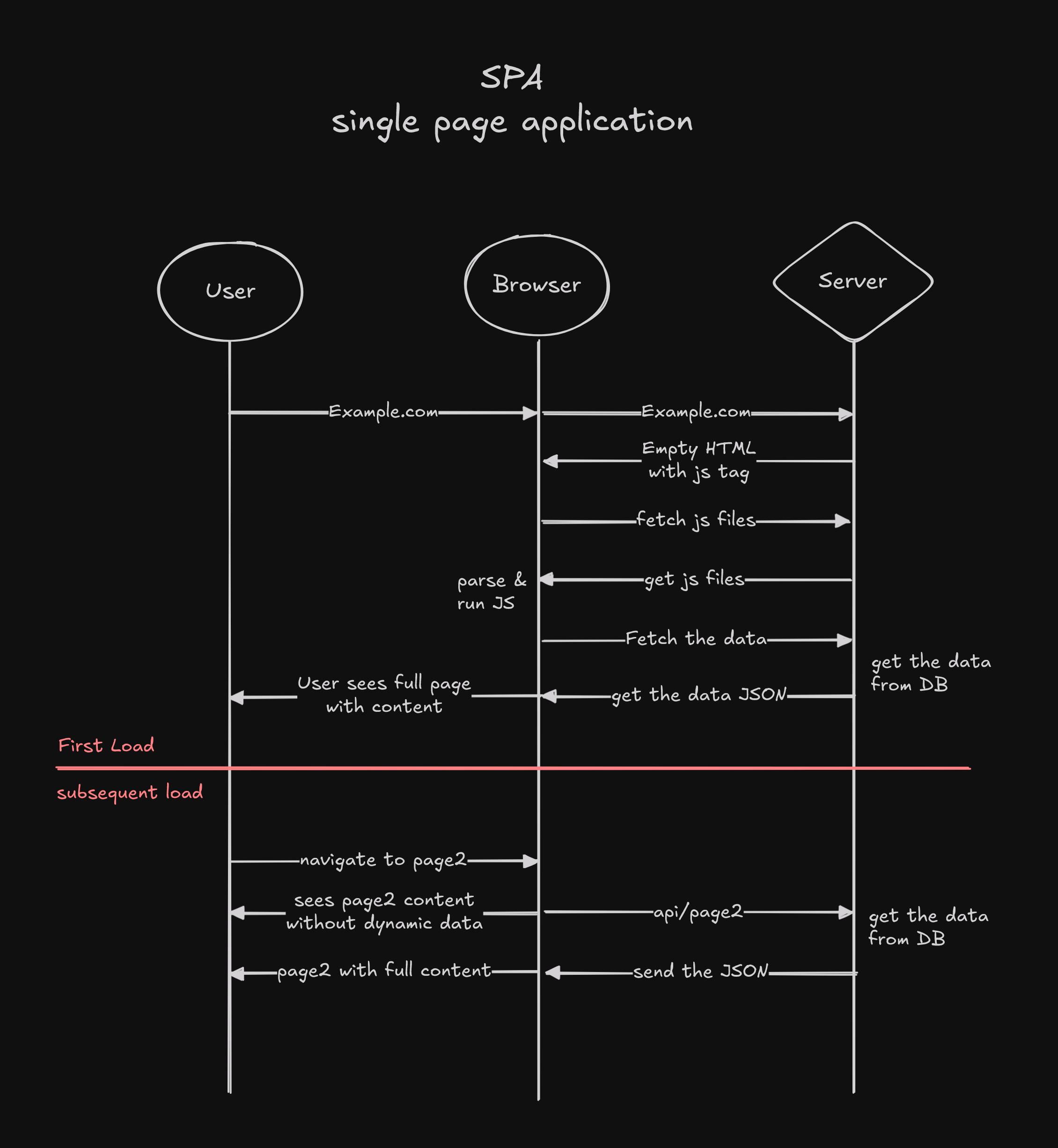

#2. Basic SPA - (Single Page Application)

Pros:

1. You get the immediate navigation on page change.

Cons:

1. Initial HTML file will be empty, which not gonna work with SEO.
2. You need to store the big chunk data on the client side to generate the pages.
3. The first load can take time because many tasks need to be completed during it

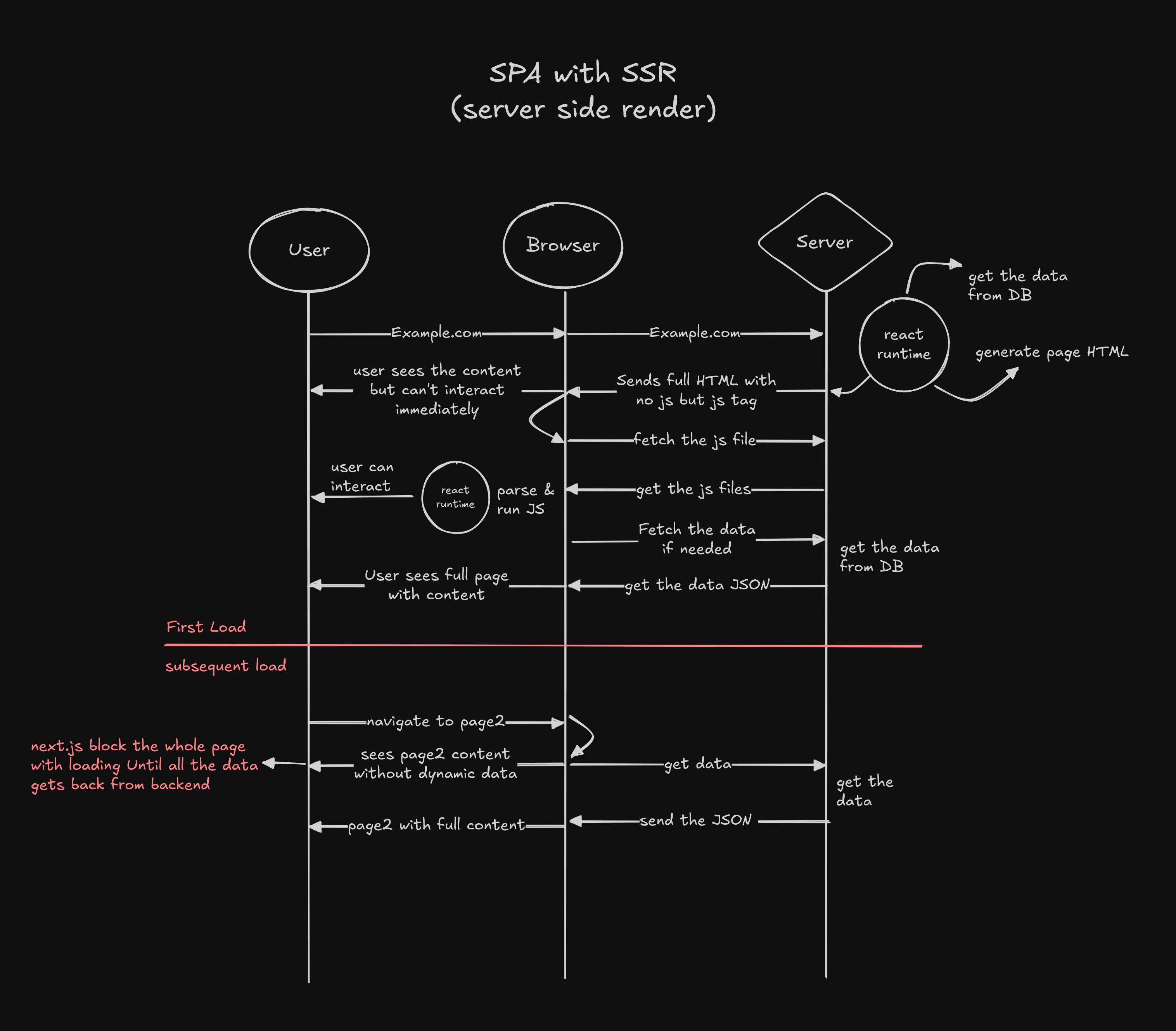

#3. SPA with SSR - (Single Page Application with Server Side Rendering)

Pros:

1. You get the immediate navigation on page change.
2. First load will have full HTML content, which is good for SEO
3. User will see content faster than traditional SPA way.

Cons:

1. You still need to store the big chunk data on the client side to generate the pages.
2. You can’t get the HTML from CDN, since we will generate it from the server.

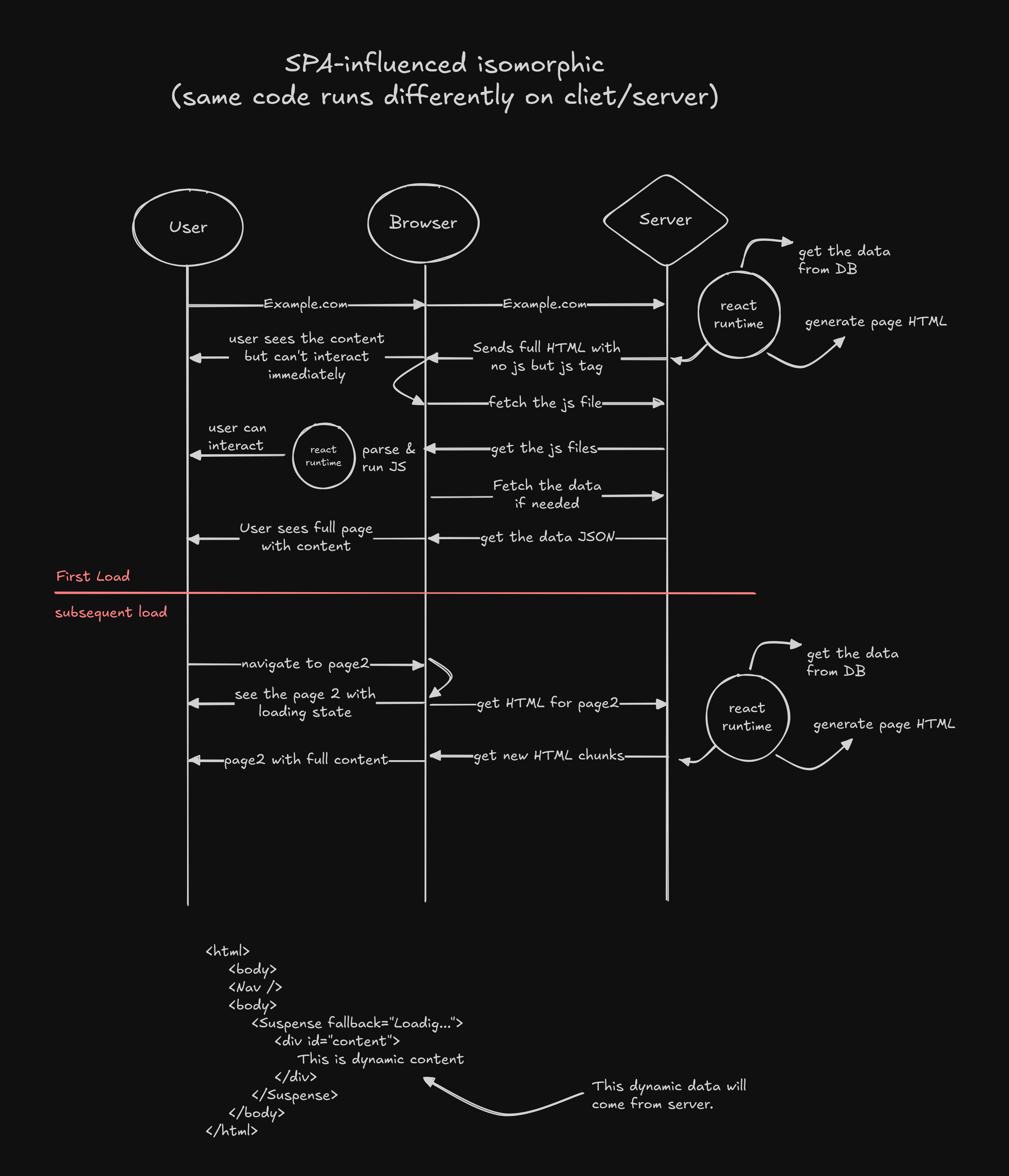

#4. SPA-influenced isomorphic (Same code runs differently on client and server)

Pros:

1. You get the immediate navigation on page change.
2. First load will have full HTML content, which is good for SEO
3. User will see content faster than traditional SPA way.

Cons:

1. You still need to store the big chunk data on the client side to generate the pages.
2. You can’t get the HTML from CDN, since we will generate it from the server.

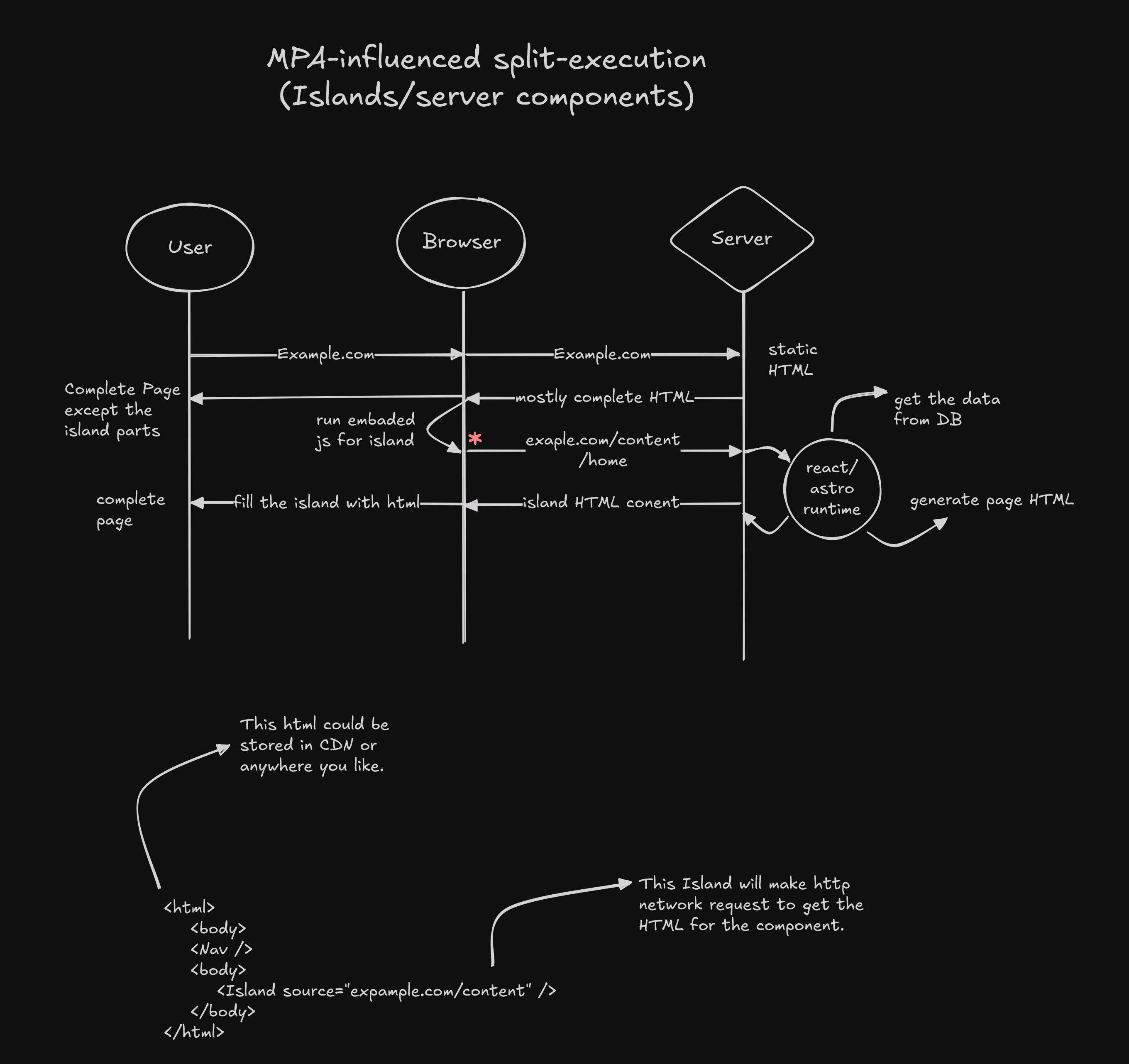

#5. MPA influenced split execution (Island/Server Component)

Pros:

1. You can store the HTML file wherever you want (CDN, S3 etc.)
2. Less complexity

Cons:

1. To get the island content you need wait for the static HTML to get back from the server first.

Thank you for taking the time to explore this guide! I hope the diagrams made understanding these HTML rendering methods easier.

All the diagrams in this post were created using the amazing tool Excalidraw 🔗.
